Power Budget for a 0.78-Inch OLED in Battery-Lab Instruments
Portable laboratory instruments, whether on a cart or truly handheld, live or die by battery runtime, and the display is a term in that budget that is easy to underestimate. A 0.78-inch monochrome OLED with a 128x80 resolution and an SPI interface is a low-power readout whose self-emissive nature means the current follows the on-screen content. Building a credible budget means separating the panel's active draw from its idle and retained-state current, and from the regulator that feeds it, because on a battery the idle term is what the pack actually has to sustain.

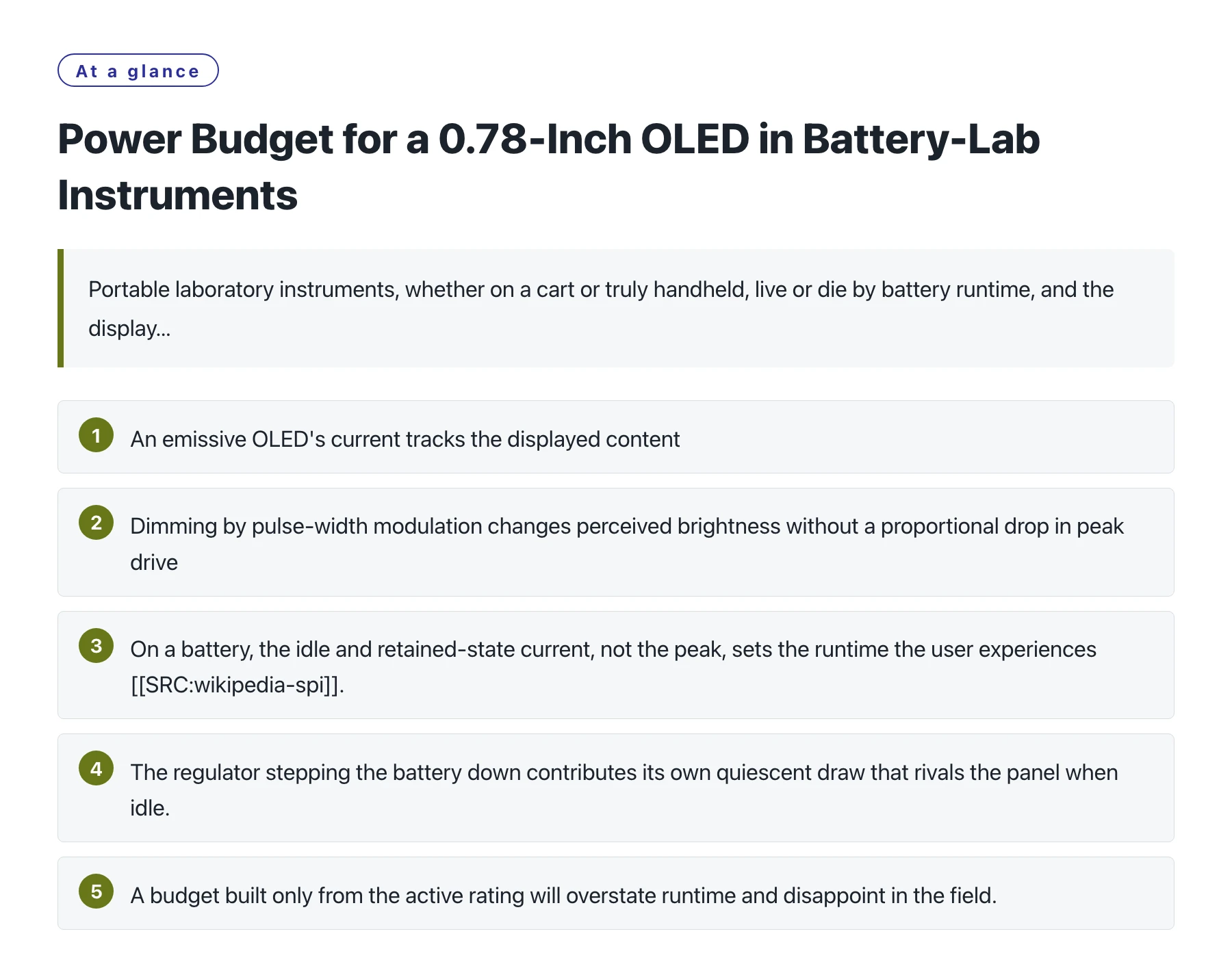

Key takeaways
- An emissive OLED's current tracks the displayed content, so a sparse lab readout draws little [1].
- Dimming by pulse-width modulation changes perceived brightness without a proportional drop in peak drive, which affects how you model average current [2].
- On a battery, the idle and retained-state current, not the peak, sets the runtime the user experiences [3].
- The regulator stepping the battery down contributes its own quiescent draw that rivals the panel when idle.
- A budget built only from the active rating will overstate runtime and disappoint in the field.
A laboratory instrument that leaves the bench still has to behave like an instrument: stable, readable and long-lived on a charge. The display's job is to show measurements clearly while drawing as little as possible during the long idle stretches between readings.
A small monochrome OLED is well suited to this because it is low power and its current scales with content. A readout that is mostly dark between samples is a light load, and there is no backlight running regardless of what is shown, which is the main power advantage over a transmissive panel.
The article builds the battery budget from the instrument's real duty cycle, separates the panel from the regulator, and explains why the idle current deserves the most attention when the pack is the limit.
Idle defines the runtime
A lab instrument may take a reading every few minutes but stay powered the whole time, which means the dominant energy term is the idle and retained-state current sustained across the session. The brief active burst is real but small in the total.
Modelling the battery from the active peak therefore overstates runtime, because it ignores the hours of low but non-zero draw that actually consume the pack. The honest budget weights the idle term by the time spent there.
The practical design move is to drive the host into a low-power mode between samples and to choose a regulator whose quiescent draw is small relative to the panel, so the always-on floor does not quietly eat the battery.
Terms in a portable instrument display budget
| Term | When it draws | What sets its size |
|---|---|---|
| Panel active | During a reading | Content brightness and fill |
| Panel idle | Between samples | Retained-state and driver quiescent |
| Regulator quiescent | Always | Step-down stage choice |
| Host logic | Always or low-power | Microcontroller idle mode |
| Wake transient | Each activation | Inrush and sequencer settling |
The regulator is part of the pack limit
Stepping a battery voltage down to the panel's low supply is a continuous draw, quiescent even when the screen is static. On a small OLED that regulator term can be comparable to the panel's own idle current, so it belongs in the battery model rather than being chosen afterwards.
The trade is familiar: a linear regulator is simple and quiet but wastes the voltage difference as heat, while a switcher is efficient but demands layout care next to sensitive measurement circuitry. The right pick depends on the instrument's analog sensitivity and its thermal headroom.
Learn more about the standby and wake behaviour on the product page before sizing the battery, because the retained-state current is the number that decides the always-on floor the pack must sustain.
The duty cycle assumption deserves a second look before the battery is sized, because it is the input that most shapes the result. An instrument that samples every few seconds looks different from one that logs continuously, and a cart-mounted unit that is switched off between uses looks different again. Writing the real pattern down and, where possible, measuring the idle current on a prototype removes the guesswork that turns a clean estimate into a disappointing runtime. The display is only one term, but because it is always powered it is the term that the pack must sustain through every quiet interval, so getting its idle contribution right is what makes the battery prediction trustworthy.
Model the battery from the weighted idle and regulator quiescent current, not the active peak. That is the load the pack actually sustains between readings.
Sources
Frequently asked questions
Does an OLED really save battery in instruments?
Its current follows on-screen content and it has no backlight running constantly, so a mostly dark readout is light. The saving is real for the idle-dominated use a lab instrument has.
Why is idle more important than peak here?
The instrument stays powered between infrequent readings, so the sustained low current, not the brief active burst, consumes the pack. The peak is a small part of the total energy.
How does PWM affect the model?
PWM changes perceived brightness without a proportional drop in peak drive, so model the resulting average current rather than assuming brightness maps linearly to power.
Should the regulator choice worry me?
Yes, on a battery. Its quiescent draw can match the panel when idle, so it belongs in the power budget and the pack-size decision from the start.
